Precision Woven Copper Wire Mesh – Ultimate Conductivity & Corrosion Resistance

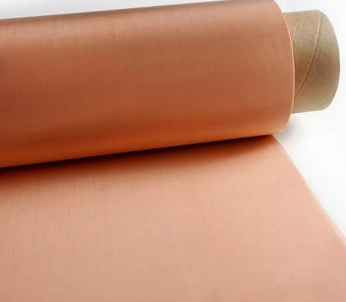

Duozhuang’s woven copper wire mesh combines C1020/C1100 pure copper alloys with advanced plain Dutch weaving technology, delivering unmatched electrical conductivity (99.9% IACS) and oxidation resistance. Ideal for EMI/RFI shielding, architectural facades, and chemical filtration, our meshes are available in 10-400 mesh sizes with custom edge treatments. ISO 9001-certified production ensures global compliance for aerospace, electronics, and marine industries.

ꄲNext： Architectural metal mesh

copper wire mesh：

1. Unmatched Material Advantages

Pure Copper Alloys: C1020 (oxygen-free) and C1100 (electrolytic) options, meeting ASTM B152 standards.

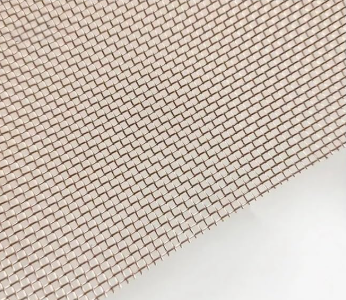

Patented Weaving: Interlocked plain Dutch weave prevents wire displacement under 800°C thermal stress.
Surface Treatments: Optional tin plating/nickel coating for saltwater environments (up to 15-year corrosion resistance).

2. Versatile Industry Applications

EMI Shielding: 200×200 mesh blocks 98% RF interference in telecom cabinets (tested per MIL-STD-285).
Architectural Cladding: 6mm aperture mesh for solar shading façades (40% UV reduction, 90% light transmission).
Chemical Filtration: Phosphor bronze hybrid weave withstands pH 1-13 solutions.
The role of copper mesh in the field of AI is irreplaceable, and its core value is reflected in three major scenarios: high-speed data transmission, efficient heat dissipation, and chip interconnection materials.

3. Technical Specifications & Customization

Parameter	Specification
Wire Diameter	0.05mm – 2.5mm (±0.01mm tolerance)

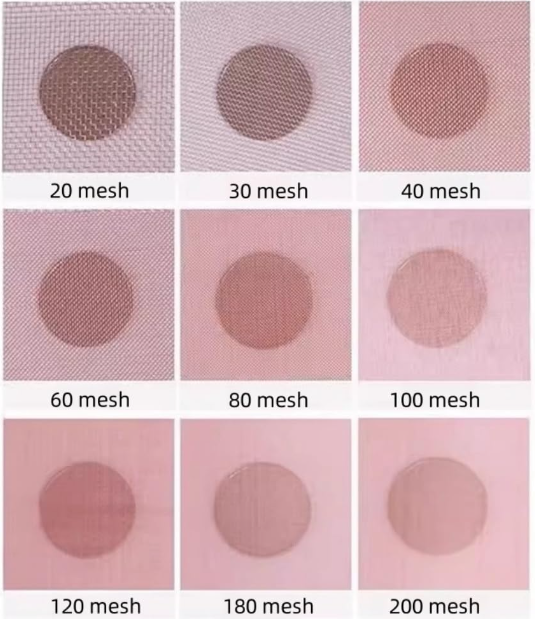

Mesh Count	10 – 400
Roll Width	1m – 2.4m (custom slit edges available)
Temperature Range	-200°C to +600°C

4. Quality Assurance & Sustainability

Testing Protocols: Salt spray (5,000+ hours), conductivity (4-point probe), tensile strength (50-350 MPa).
Certifications: RoHS, REACH, and conflict-free mineral sourcing reports.
Eco-Friendly: 100% recyclable material with carbon-neutral production process.

Technical Differentiation Table

Feature	Duozhuang	Industry Standard
Conductivity	99.9% IACS	98.5% IACS
Edge Reinforcement	Laser-welded brass borders	Raw cut edges
Lead Time	7-10 days (custom orders)	4-6 weeks
Recyclability	100% closed-loop system	70-85%
