12 Mesh Stainless Steel Wire Cloth: Precision Screening for Demanding Industries

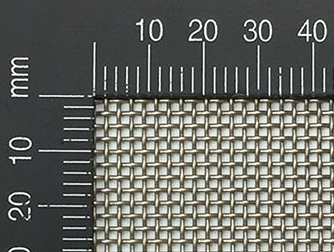

12 Mesh Stainless Steel Wire Cloth is a precision industrial material defined by 12 uniform openings per linear inch (25.4mm). This specific mesh count, combined with an adjustable wire diameter range of 0.3mm to 1.0mm, creates a versatile screen ideal for a vast array of applications, from fine particle filtration in the pharmaceutical industry to heavy-duty sizing in mining operations. The relationship between wire diameter and weight is direct: for the same 12 Mesh specification, a thicker wire results in a heavier, more durable, and consequently, more expensive screen per square meter. At Duozhuang, we provide a comprehensive range of 12 Mesh Wire Cloth, offering expert guidance to help you select the most cost-effective and performance-optimized specification for your project.

Technical Specifications: Precision at Its Core

Understanding the exact specifications is the first step in selecting the right screen. Below are the standard parameters for our 12 Mesh Stainless Steel Wire Cloth, with customization available to meet your unique needs.

Material Selection Guide: Matching Alloy to Environment

The operating environment dictates the optimal material. Selecting the correct grade is paramount for longevity, safety, and cost-effectiveness.

• Stainless Steel 304 (18-8): The most versatile and widely used grade. It offers excellent all-around corrosion resistance and good formability, making it a cost-effective choice for general industrial screening, food processing equipment (e.g., sifting grains, powders), and architectural applications where high chloride exposure is not a concern.

• Stainless Steel 316/316L: The addition of Molybdenum dramatically enhances resistance to pitting and crevice corrosion from chlorides, saline environments, and a wider range of chemicals. It is the preferred material for marine applications, chemical processing plants, and pharmaceutical filtration. 316L is recommended for environments where welding is required, as it offers improved resistance to sensitization.

• Other Alloys (201, 310S, etc.):

  • SS201: An economical alternative to 304, suitable for less corrosive environments or where budget is a primary constraint.

  • SS310S: With high chromium and nickel content, this grade offers excellent resistance to oxidation and can withstand high temperatures, making it suitable for heat treatment and furnace applications.

Weaving Processes: Plain Weave vs. Twilled Weave

The method of weaving imparts distinct characteristics to the final product, influencing its surface, strength, and suitability for different applications.

• Plain Weave: This is the most common and robust weave pattern. In this structure, each warp wire passes over and under each weft wire in an alternating pattern. The resulting mesh has a uniform and flat surface, offering high strength and stability. It is the standard choice for most screening and filtration applications.


• Twilled Weave: This weave is characterized by a pattern where each warp wire passes over two and under two weft wires, creating a distinctive diagonal ribbed appearance. This structure allows for the use of heavier wire diameters for a given mesh count, resulting in a very strong and durable mesh. It often provides a smoother surface for material flow compared to plain weave.


Primary Industrial Applications: Engineered for Performance

The 12 Mesh specification, with its balance of open area and strength, is uniquely positioned to serve diverse and demanding sectors.

• Chemical, Pharmaceutical & Marine Filtration:

  • Use Case: Filtering chemical granules, catalyst pellets, and process water in highly corrosive environments.

  • Material Advantage: The corrosion resistance of SS316 or 316L ensures product purity and equipment integrity when exposed to aggressive substances and saline conditions.

• Food & Beverage Processing:

  • Use Case: Sifting and grading dry ingredients like flour, sugar, and spices, or use as a strainer in liquid production lines.

  • Material Advantage: SS304 or SS316 surfaces are non-toxic, easy to clean, sanitize, and resist corrosion from food acids and cleaning agents, complying with FDA and USDA standards.

• Mining, Quarry & Construction:

  • Use Case: Sizing and screening aggregates, sand, and other minerals. A thicker wire diameter (e.g., 0.8mm-1.0mm) is recommended to withstand impact and abrasion.

  • Material Advantage: High tensile strength and abrasion resistance ensure long service life and reduced downtime in rugged operating conditions.

• Aerospace, Research & Medical:

  • Use Case: Used in critical filtration and separation processes where precision and material integrity are non-negotiable.

  • Material Advantage: The availability of high-purity, high-performance alloys like 316L and 310S meets the stringent requirements of these advanced sectors.

Customization & Fabrication Services

We understand that standard specifications may not always suffice. Our strength lies in our ability to deliver tailored solutions.

• Material & Dimension Customization: We can supply 12 Mesh screens in a wide array of materials, including 201, 669, 304, 304L, 321, 316, 316L, 310S, and 2520, in your required width and length.

• Shape Fabrication: Supplied in rolls, the mesh can also be precision slit, cut into square or circular sheets, or fabricated into filter baskets, cylinders, and other complex shapes to integrate seamlessly into your equipment.

Why Partner with Duozhuang?

Choosing Duozhuang means partnering with an expert dedicated to providing not just a product, but a solution.

• Expert Guidance: We help you navigate the critical choice between material grades and wire diameters, ensuring optimal performance and cost-efficiency for your specific application.

• Proven Quality & Compliance: Our products can be manufactured and tested according to international standards such as GB/T 5330 for industrial metal wire cloth and other relevant metrics for mesh count, wire diameter, and aperture consistency.

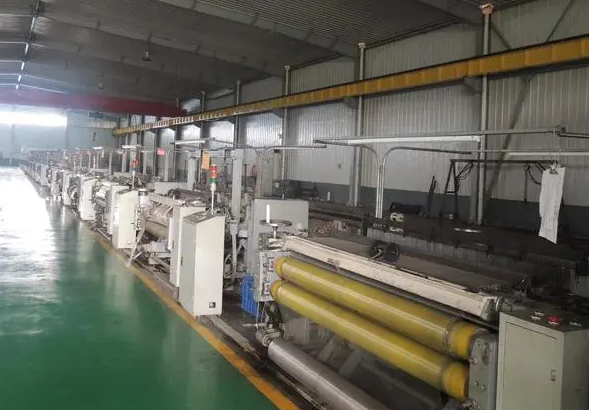

• Reliable Supply Chain: We maintain a robust inventory of raw materials and standard specifications, enabling flexible and rapid response to your project demands.


Get Your Customized Solution Today

Optimize your process with the precise 12 Mesh Wire Cloth it requires. Contact us for a competitive quote and expert technical consultation.

Request a Free Quote and Technical Data
