6 Mesh Stainless Steel Wire Cloth | 2.48-3.73mm Aperture | In Stock
6 Mesh Stainless Steel Wire Cloth: Precision Screening for Diverse Industries
6 Mesh Stainless Steel Wire Cloth is defined by having 6 openings per linear inch (25.4mm), creating a versatile medium-grade screen. With a standard aperture range of 2.48mm to 3.73mm and a wire diameter range of 0.45mm to 1.5mm, it offers an optimal balance of strength, flow rate, and particle retention for countless industrial applications.
From rugged mining operations to stringent food and pharmaceutical production, this wire cloth is a reliable choice. At Duozhuang, we supply 6 Mesh in various materials including SS304, SS316, SS201, and 904L, and we specialize in custom manufacturing to meet your exact specifications for unique projects.
Technical Specifications: Precision Engineered for Your Application
Understanding the precise specifications is key to selecting the right screen for your needs. Below are the standard and customizable parameters for our 6 Mesh Stainless Steel Wire Cloth.
| Specification | Detail | Notes |
|---|---|---|
| Mesh Count | 6 per linear inch | 6 openings within a 1-inch (25.4mm) length. |
| Aperture (Opening Size) | 2.48 mm - 3.73 mm | The clear distance between wires. Customizable within this range. |
| Wire Diameter | 0.45 mm - 1.5 mm | A thicker wire enhances durability; a thinner wire increases open area and flow. |
| Material Available | SS 304, SS 316, SS 201, 904L | 304: General purpose. 316: For corrosion resistance. 201: Economic alternative. 904L: For severe corrosion. |
| Weaving Type | Plain Square Weave | The most common and robust weave pattern for screening and filtering. |
Primary Industrial Applications: A Solution Across Sectors
Our 6 Mesh Wire Cloth is engineered to perform in demanding environments across a wide spectrum of industries.
-
Mining, Quarry & Aggregate: Ideal for sizing and screening crushed stone, sand, coal, and ores. The robust wire diameters (e.g., 1.2mm-1.5mm) withstand high impact and abrasion in vibrating screens.
-
Oil & Gas Industry: Used as filter screens in drilling mud systems and for protecting sensitive equipment from debris. SS316 and 904L materials offer essential resistance to corrosive elements like saltwater and sulfides.
-
Chemical & Pharmaceutical Processing: Perfect for filtering and sizing chemical granules, catalyst pellets, and certain active pharmaceutical ingredients (APIs). The inert nature of stainless steel ensures product purity and resistance to chemical attack.
-

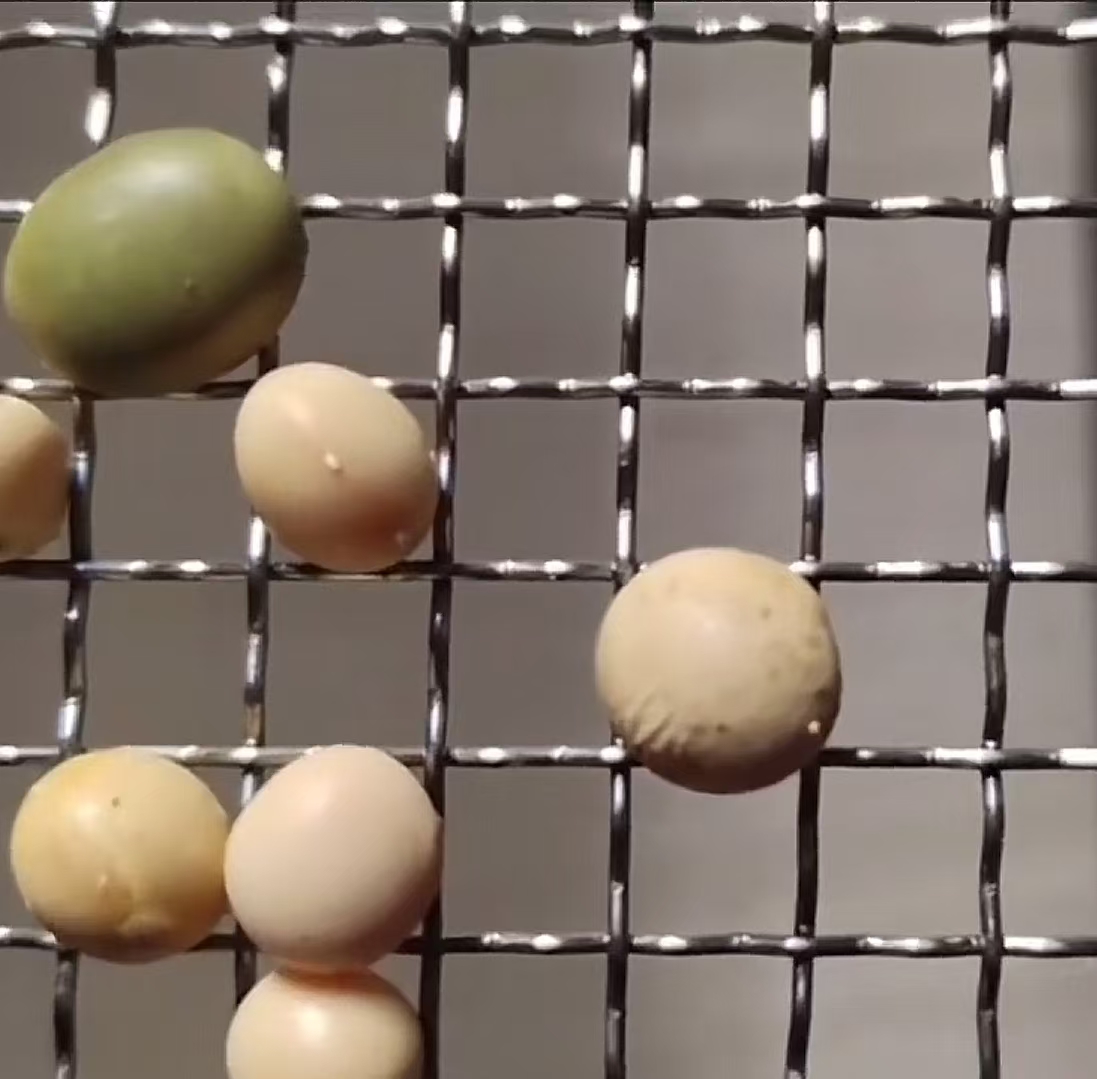

Food & Beverage Production: Excellent for sifting and grading grains, sugar, salt, and nuts. SS304 or SS316 surfaces are easy to clean and sanitize, complying with food safety standards (e.g., FDA, USDA).
-
Machinery & Manufacturing: Used for safety guards, ventilation panels, and in-machine sorting or feeding systems. Provides protection without sacrificing airflow or visibility.
Customization: Getting the Exact Screen You Need
The standard ranges provide versatility, but some applications demand precision. Duozhuang excels in delivering custom-engineered wire cloth solutions.
-
Precision Aperture Control: Need a specific aperture of 3.0mm for a critical particle separation? We can manufacture to your exact tolerance.
-
Special Wire Diameter: Require an ultra-strong 1.5mm wire or a high-flow 0.45mm wire? We provide the specific wire diameter that optimizes performance and lifespan for your unique conditions.
-
Material Expertise: Whether you need the standard SS304, the marine-grade SS316, the cost-effective SS201, or the super-austenitic 904L for extreme chloride environments, we have the material for your application.
Why Source Your 6 Mesh Wire Cloth from Duozhuang?
Choosing Duozhuang means partnering with a reliable expert dedicated to your project's success.
-
In-Stock Availability: We hold substantial inventory of standard 6 Mesh screens in SS304, SS316, and SS201, ensuring fast delivery.
-
Made-to-Order Precision: We specialize in customizing the aperture, wire diameter, material, and sheet size to your precise requirements.
-
Quality Assured: Our rigorous manufacturing and quality control processes guarantee that every sheet of wire cloth meets the specified dimensions and is free from defects.
-
Technical Partnership: Our engineering team provides expert support to help you select the optimal wire diameter and material grade for your specific screening pressure, abrasion level, and chemical environment.
Request Your Custom Quote Today
Ensure your process is equipped with high-quality, precisely manufactured wire cloth. Contact us for a competitive quote and technical data.
